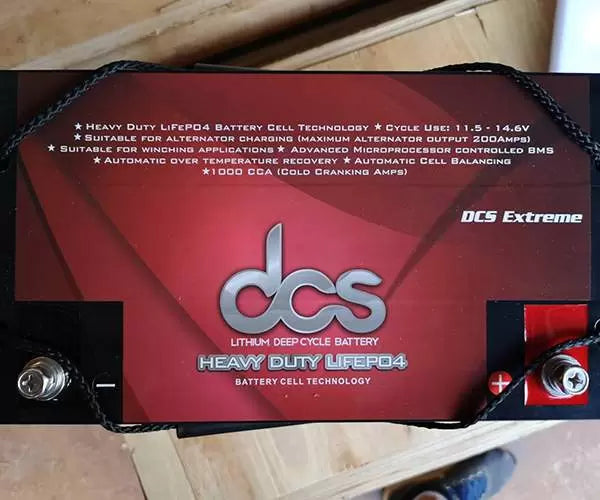

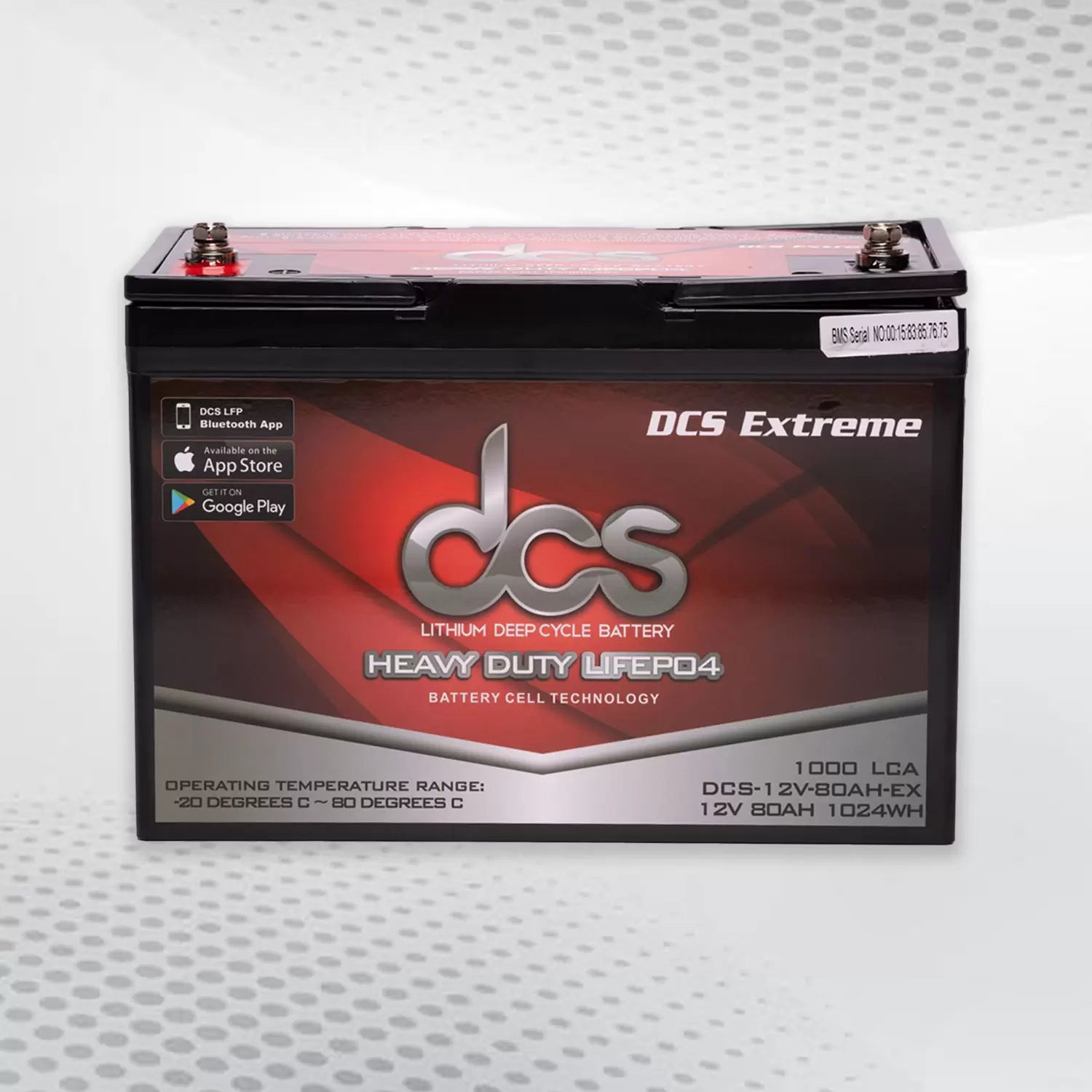

12V 80AH EXTREME BATTERY (LITHIUM)

INSTOCK

Specifications of our 12V 80Ah Extreme batteries:

• Specifically developed for starting large inboard and outboard marine engines, running bow thrusters and winches

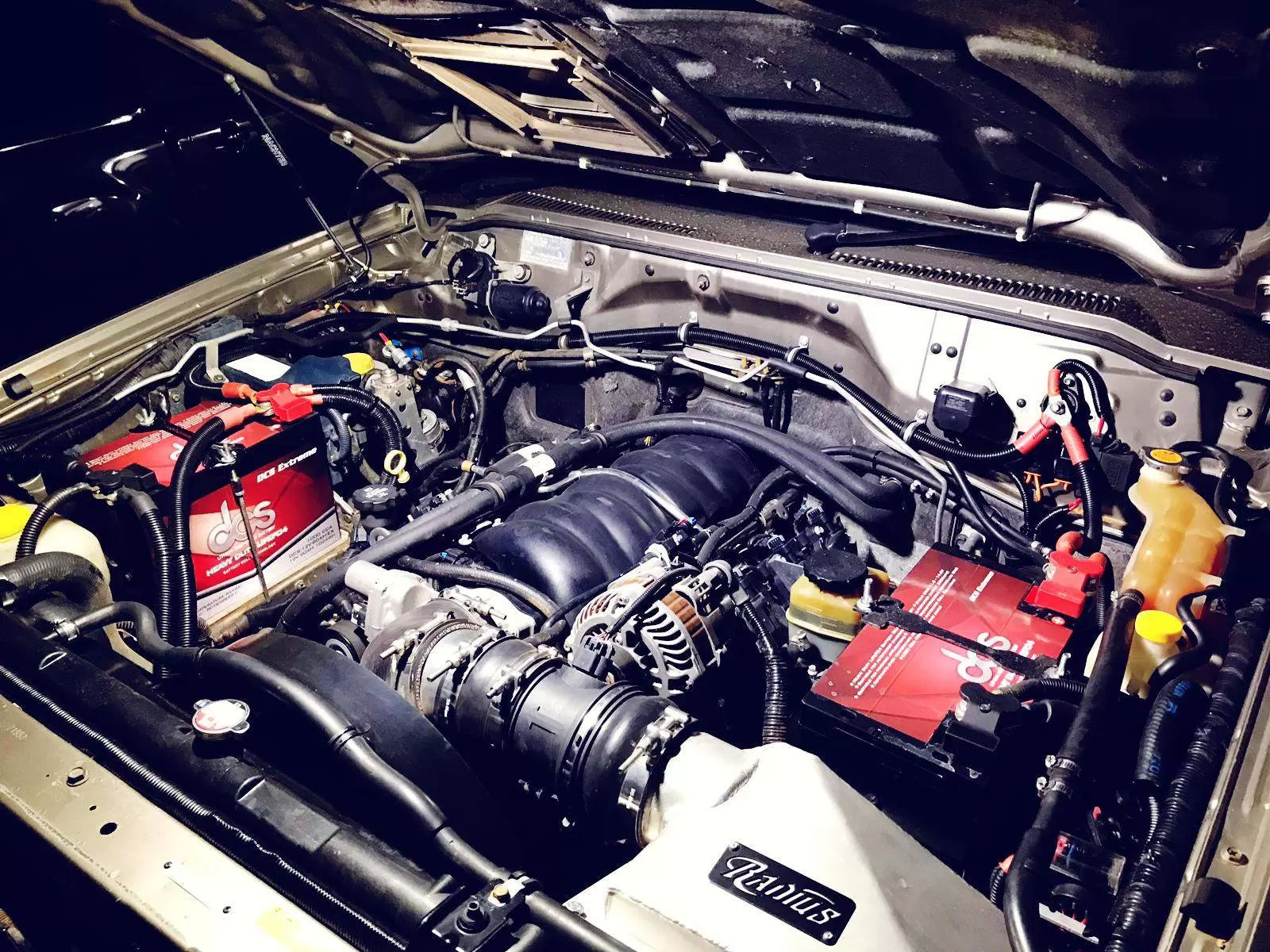

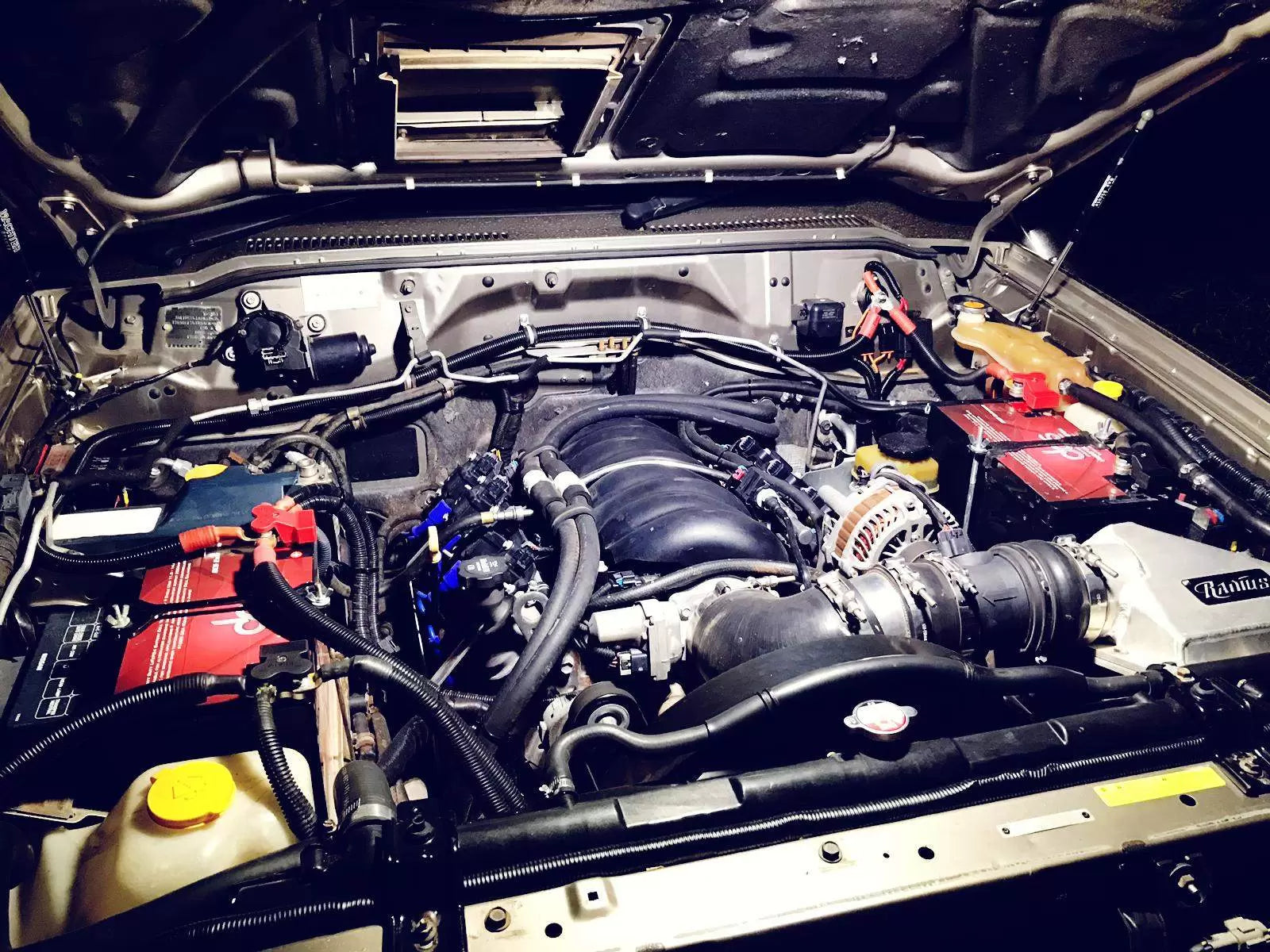

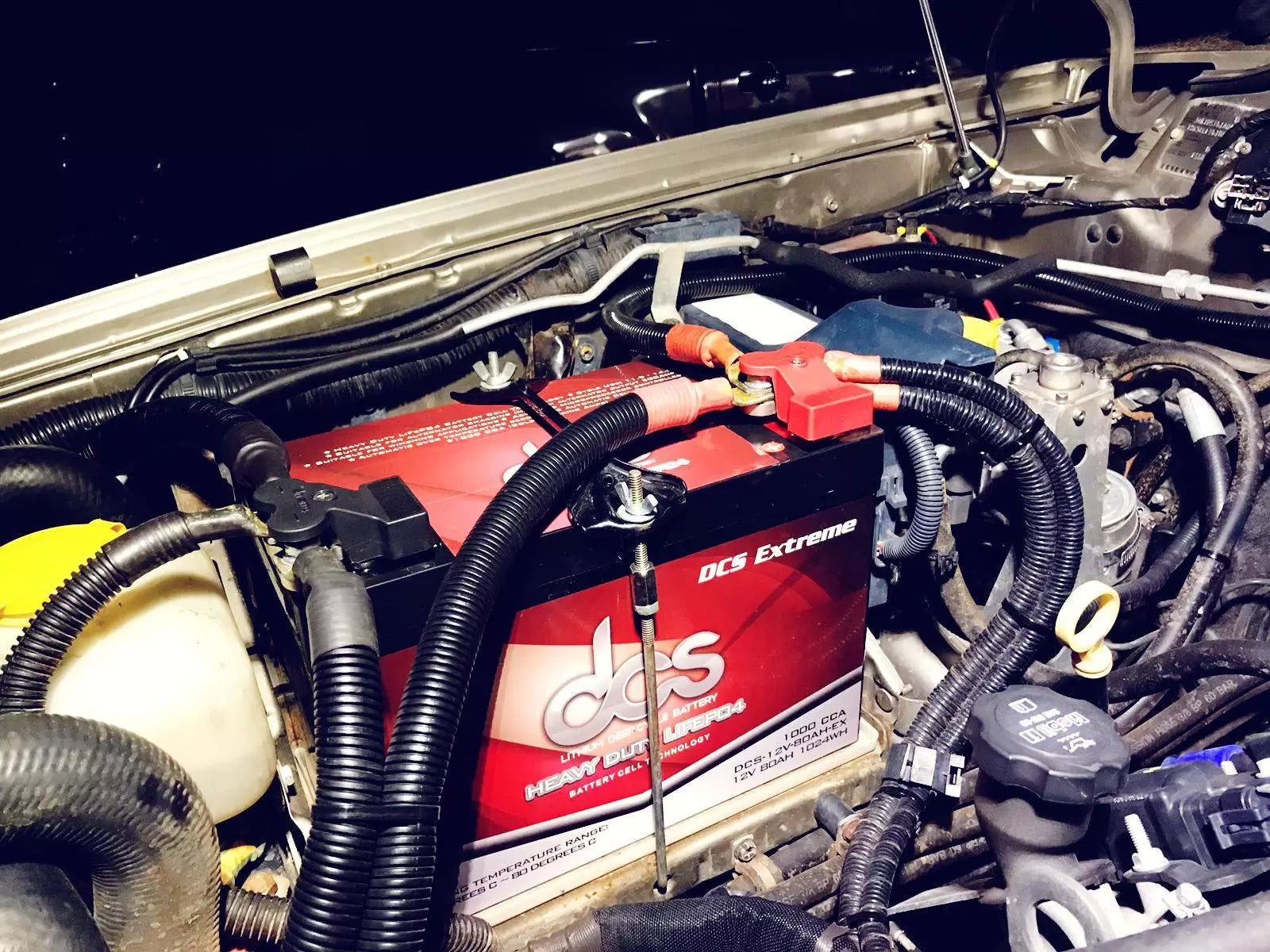

• Well suited for under bonnet and engine room applications
• Heavy duty 6C/6C rated LFP Cells
• DCS active cell management technology (CMS)
• ABS flame retardant case
• Weight: 11.96KGs
• Temperature working range -25 degrees to 110 degrees C
• 3 year warranty


Specifications:	–
Nominal Voltage	12.8V
Nominal Capacity (1Hr)	80Ah
Case Dimensions (L x W x H)	306mm x 168mm x 211mm (N70 size)
Weight	11.96 KGs
Cycling voltage	11.5 ~ 14.6V
Charge voltage	14.0 ~ 14.6V
Float Voltage	13.5 ~ 13.7V
LCA	1200A
Maximum Charge Current	180A
Recommended Charge Current	50A+
Maximum Discharge Current	400A for 10sec 350A for 1min 300A for 3min 200A Continuous
DCS BMS (internal)	DCS active cell management system, over/under voltage, over current charge/discharge, low/high temperature protections, satisfies the AS/NZS 3001.2:2022 lithium battery standards
Cell Chemistry	LFP (LiFePO4)
Ingress Protection	IP54
Case	ABS plastic flame retardant case
Operating Temp Range	-25°C to 85°C
Terminals	M8
Parallel Connections	Up To 10
Warranty	3 years
Certifications	UN 38.3, UL 1642, IEC 62133 & 62619, CE
