Heavy Duty Rebel Rear SumoSprings to suit 2014+ Ram 3500
Heavy Duty Rebel Rear SumoSprings to suit 2014+ Ram 3500
The Rebel Rear SumoSprings are a maintenance-free suspension enhancement built to create a better journey. Handmade from micro-cellular polyurethane, they are designed to reduce rear-end sag and increase load carrying ability while decreasing vibration, stabilising sway, and softening harsh rebounds.
Corrugated and bumpy roads? Throwing a bunch of weight in the back? Hooking up the caravan? No longer a problem with these Rebel Rear SumoSprings installed.
These Rebel Rear SumoSprings, have a higher load carrying capacity than the traditional Rear SumoSprings. These have 2 x SumoSprings which disconnect on full articulation, making sure you have maximum support in the harshest terrain.
These replace the factory bump stops to give additional load support.
The Load Ratings are to demonstrate the loaded capacity when compressed at 50%.
The SumoSprings should not be compressed past 70% of their original height in order to keep full memory rebound.
Load Ratings & Colour:

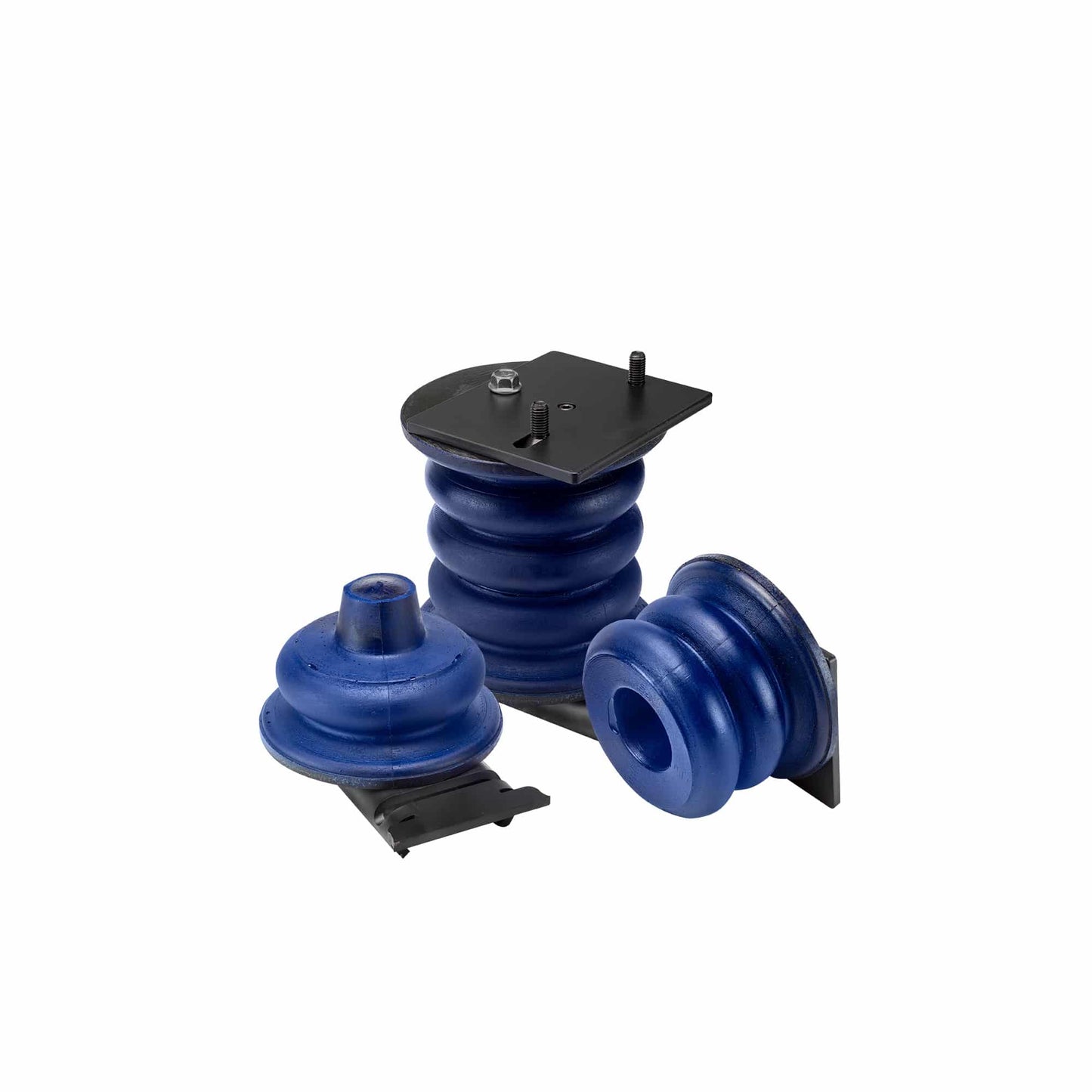

- 1,360kg Capacity at 50% Compression - Dark Blue. Do not exceed 70%.

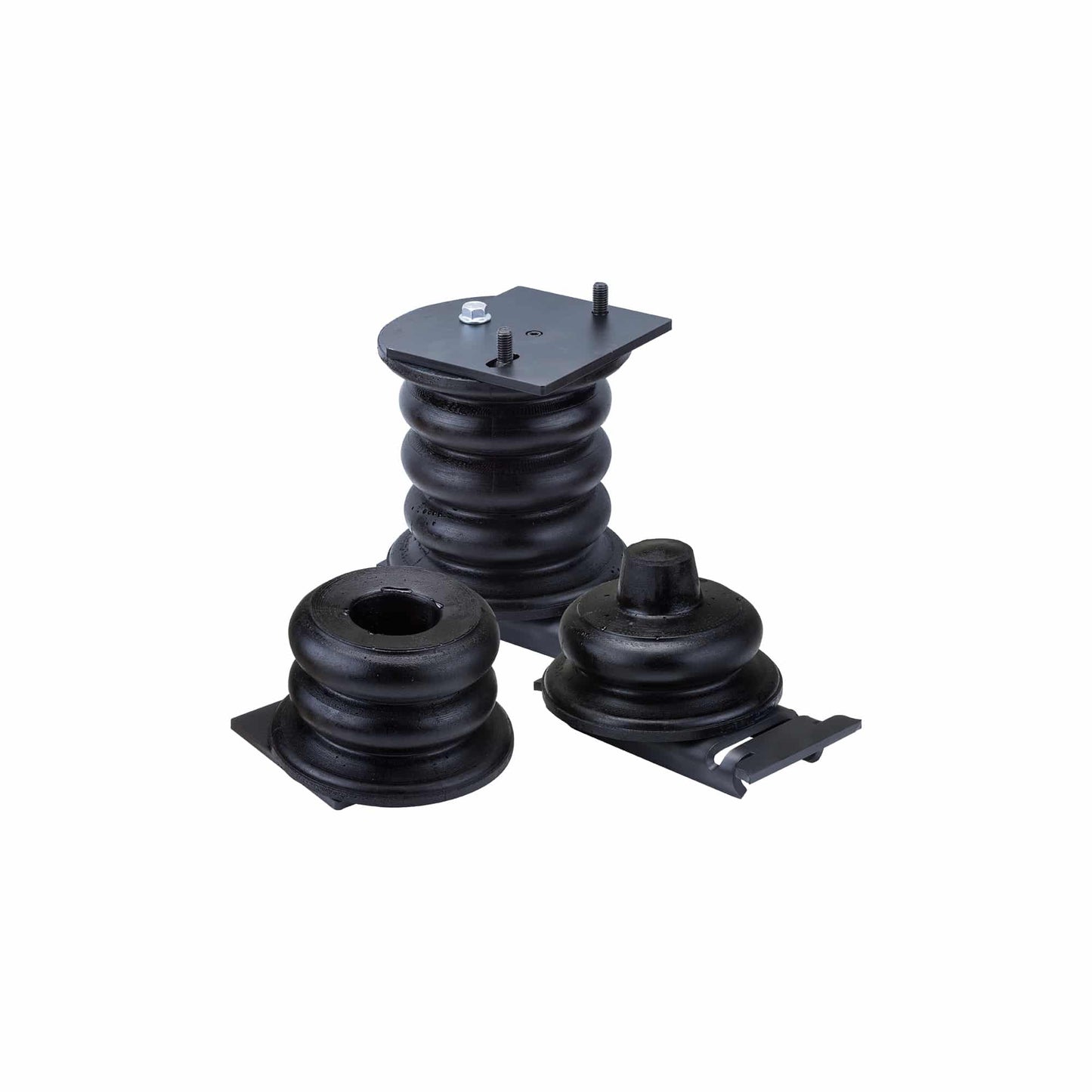

- 2,260kg Capacity at 50% Compression - Black. Do not exceed 65%.
This is designed to suit:
Ram
- 2003-2013 Ram 2500 with Leaf Springs (click here for 2014+ Coil Spring Models)
- 2014 - 2018 Ram 3500 DJI
- 2019 - Present Ram 3500 DJII
Note for lifted trucks: A Spacer Kit may be required to install this product.
Installation
View / Download the Installation Instructions
Installation Difficulty 2/5 - Time: 45 Minutes
