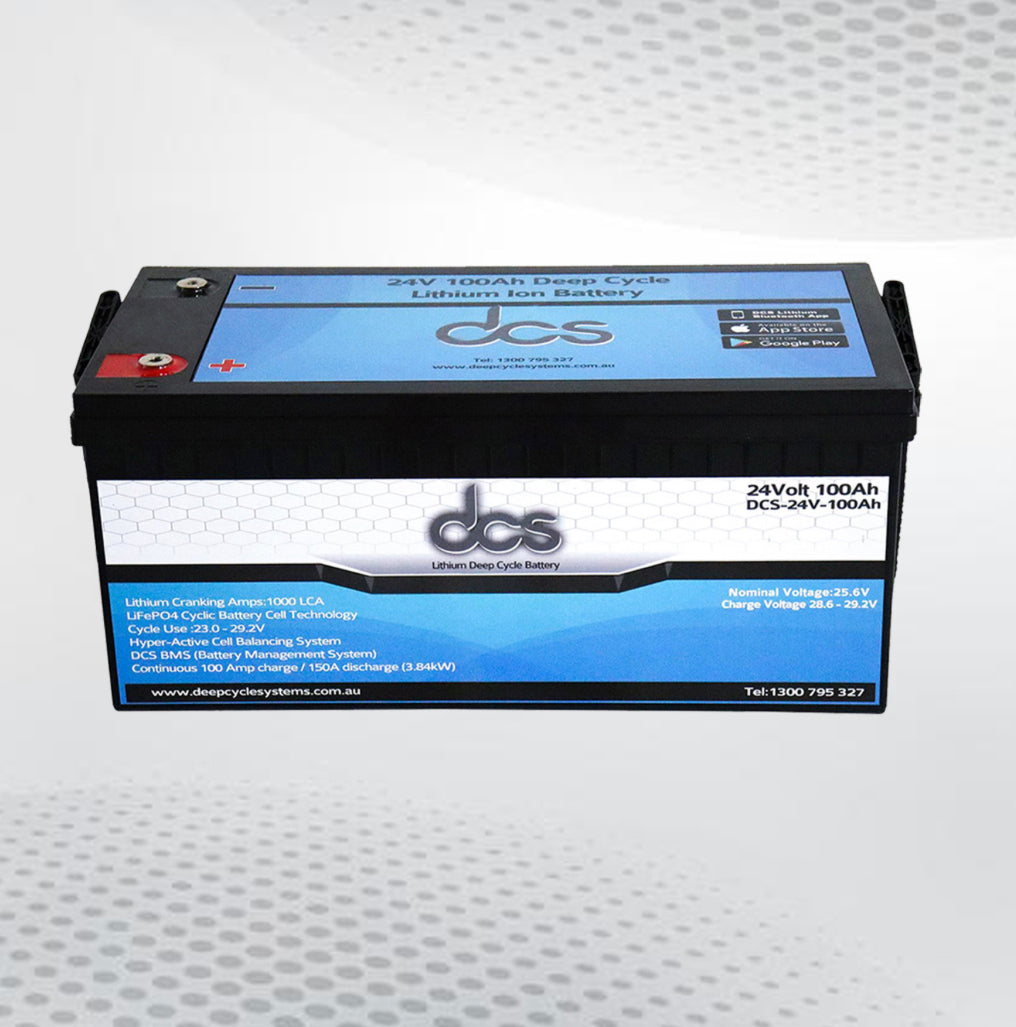

DCS 24V 100AH (LITHIUM)

  Specifications: – Nominal Voltage 25.6V Nominal Capacity (1Hr) 100Ah Dimensions Length: 520mm, Width: 238mm, Height: 217mm Weight 25.0 Kg Cycling voltage 23.0~ 29.2V Charge voltage 28.6 ~ 29.2V Float Voltage 27.0V Maximum Charge Current 100A Recommended Charge Current ≤70A Maximum Discharge Current ≤200A BMS (built in) Automatic cell balancing,...
-
+



Specifications:
Nominal Voltage 25.6V
Nominal Capacity (1Hr) 100Ah
Dimensions Length: 520mm, Width: 238mm, Height: 217mm
Weight 25.0 Kg
Cycling voltage 23.0~ 29.2V
Charge voltage 28.6 ~ 29.2V
Float Voltage 27.0V
Maximum Charge Current 100A
Recommended Charge Current ≤70A
Maximum Discharge Current ≤200A
BMS (built in) Automatic cell balancing, over discharge/charge
Cell Chemistry DCS 3.2V 7.2Ah Cylindrical (LifePO4)
Cycle Performance 2500 Cycles @ 100% DOD
LCA 1000
Engine cranking Max 3000W starter motors
Ingress Protection IP54
Case ABS (flame retradent plastic)
Operating temp Range -30 to +80 degrees C
Terminals Top Mount M8 Stainless steel / Copper
Parallel Connections Only Yes
Warranty 4 year standard install

All DCS batteries now feature our comprehensive Bluetooth System available on both Android and Apple operating systems shows a lot of cool things.

– Cell status showing real time cell balancing operation
– BMS MOSFET temperature ( great info when your winching or running a large inverting load or your trolling motor to know how hard your pushing the electronics ).
– SOC% estimate (using impedance tracking – the App learns the SOC after the first 10 cycles)
– Battery pack voltage and cycle count
– Amp meter – showing charge and discharge current
– Connectivity distance up to 10m
– Now there is no need to install battery monitors or shunts in boats, campers or vehicles. You have all the info you need at your finger tip.
– The SOC estimate is accurate on single batteries, the more batteries that are expanded in parallel the less accurate the SOC becomes.
– This free application provides the perfect tell-tale about the battery packs state of health as it ages
– Assists installers & integrators to quickly diagnose any system issues
