EC Offroad

DCS 12V 260AH DUAL BATTERY SYSTEM (LITHIUM)

DCS 12V 260AH DUAL BATTERY SYSTEM (LITHIUM)

Regular price $2,528.00 USD
Regular price $2,928.00 USD Sale price $2,528.00 USD
Sale Sold out
Tax included.
Preference
  •  2 x DCS 130Ah LFP Batteries
  • Victron Smart Battery Protect SBP-65A
  • Max Alternator Output 250Amps
  • Backed by a 3 Year Under Bonnet Replacement Warranty
  • Fully Programmable Via Bluetooth
  • Tiny Power Consumption 1.2mA When Engaged
  • Suitable for LandCruiser 200
  • Integrated 80V/20A MPPT Solar Regulator



PRE ORDER NOW




DCS Engineering High Efficiency 80V/20A MPPT Solar Regulator Especially Developed For in Battery Applications.


Our Latest Upgraded Hybrid Under Bonnet Dual Battery Systems Have Just Been Finalized, 30% More Storage and Now With an Integrated 20A MPPT Solar Regulator.

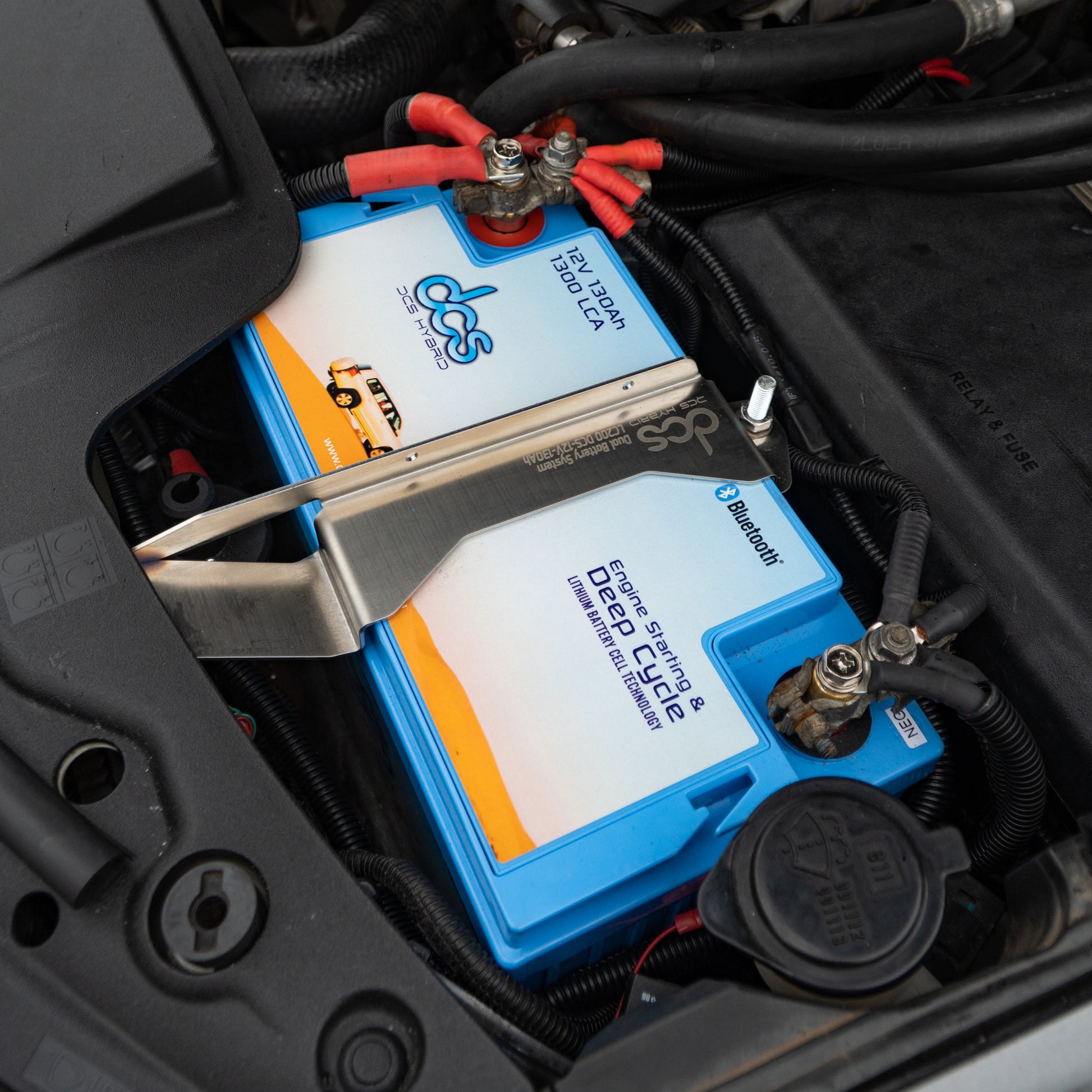

 2 x DCS 130Ah LFP Batteries (Optimized for Engine Bay Installs)
Victron Smart Battery Protect SBP-65A
Max Alternator Output 250Amps
Backed by a 3 Year Under Bonnet Replacement Warranty
Fully Programmable Engine Cranking Reserve % Via Bluetooth
Tiny Power Consumption 1.2mA When Engaged
Suitable for Land Cruiser 80, 100, 200 & 300 Series and Any Other Vehicles That Can Accommodate the Battery Size
Massive 210Ah Usable for Accessories with 50Ah Reserved for Engine Starting
DCS 80V/20A Integrated MPPT Solar Regulator Included Inside One of the Batteries for Direct Solar Input from any Solar Panel up to 80Voc



With 260Ah of Total Lithium Storage Means You Have 260Ah x 20% = 50Ah Always There for Engine Cranking. Allowing the Upper 80% for Deep Cycling 210Ah. Why do we Use the Latest Fully Programmable Victron Smart Battery Protects? Because They Only Have a 1.2mA Engaged Current Draw and the Isolators Will Spend 99% of Their Service Life Engaged. They Have Bluetooth so Via the Victron Connect App You can Make Quick and Easy Adjustments, Override the Isolators and Check Battery Voltages. It Also Means You Don’t Need to go Pulling the Car Apart to get to it to Check it. These Isolators Should be Installed as close to the Batteries as Possible but Inside the Cabin They are not Suitable for Engine Bay Installations.



 Specifications :
Normal Voltage 12.8V
Nominal Capacity (1HR) 130Ah
Dimensions Length: 328mm, Width: 171mm, Height: 215mm
Weight 15.0kg
Cycling Voltage 12.8~ 14.6V
Charge Voltage 13.8 ~ 14.6V
Float Voltage 13.5 ~ 13.7V
Max. Charge Current 125A
Recommended Discharge Current ≤100A
Maximum Discharge Current ≤200A
BMS (Built In) Automatic Cell Balancing, Over Discharge/Charge
Cell Chemistry DCS 3.2V 7.2Ah Cylindrical (LifePO4)
Cycle Performance 2500 Cycles @ 100% DOD
LCA 1000
Engine Cranking Max 3000W Starter Motors
Ingress Protection IP54
Case PP (Flame Retardant)
Operating Temp. Range -30 to +80 Degrees C
Terminals Top Mount M8 Stainless Steel / Copper
Parallel Connections Only  Yes
Warranty 3 Under Bonnet
