Carbon Winches Australia 500 amp Battery Isolator Switch Kit with Cable
Carbon Winches Australia 500 amp Battery Isolator Switch Kit with Cable

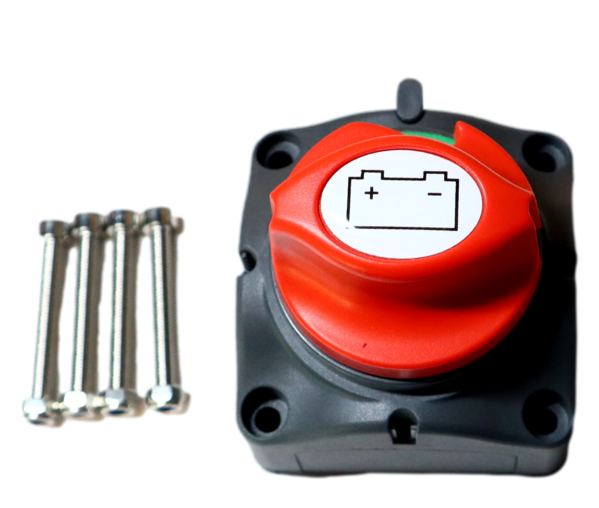

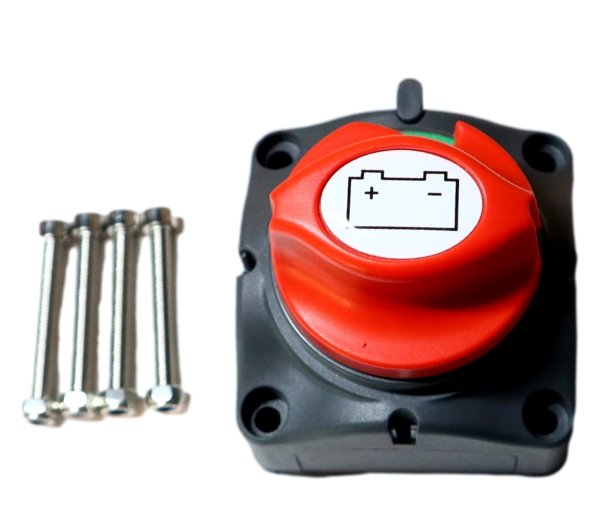

Battery Isolator Switch complete with 4 x mounting bolts with nuts and a 30cm power cable
- Current & Voltage
On/Off 2 positions, 275 A continuous at DC 12V, 455 A intermittent at DC 12V, 1250 A momentary at DC 12V.
- Simple Operation
The switch can be disconnected and reconnected by simply turning the knob and is supplied with bolts.
-
Sturdy Construction
The switch is made of ABS plastic housing and solid brass nut, rust-proof, corrosion-resistant, durable, and safe to use.
-
Great Compatibility
The battery switch used on DC 12 – 48 V systems to isolate and secure the electrical system.
-
Safety Protection
The battery switch eliminates any drain on the battery and safely disconnects it when the vehicle or boat is not in use.
Datasheet
Max. Current | 275A |
Max. Voltage | 48V |
Switch Function | ON-OFF |

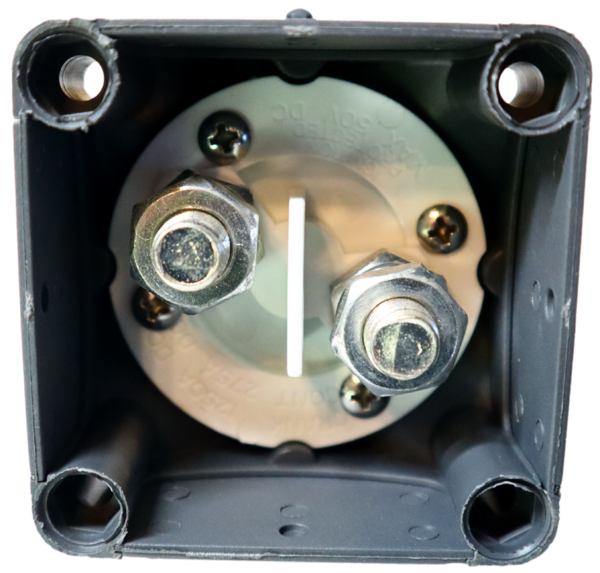

Termination Stud Size | 3/8″ (10 mm) x 2 |
Operating Temperature | -25℃~+85℃ |
Housing color | BK-Black |
