BDS Suspension

BDS 6.5" Lift Kit for 2011-2019 Chevy Silverado 2500 with Fox 2.5 Performance Elite Shocks

BDS 6.5" Lift Kit for 2011-2019 Chevy Silverado 2500 with Fox 2.5 Performance Elite Shocks

Regular price $9,252.00 USD
Regular price Sale price $9,252.00 USD
Sale Sold out
Tax included.
Shock Options
Overload Option

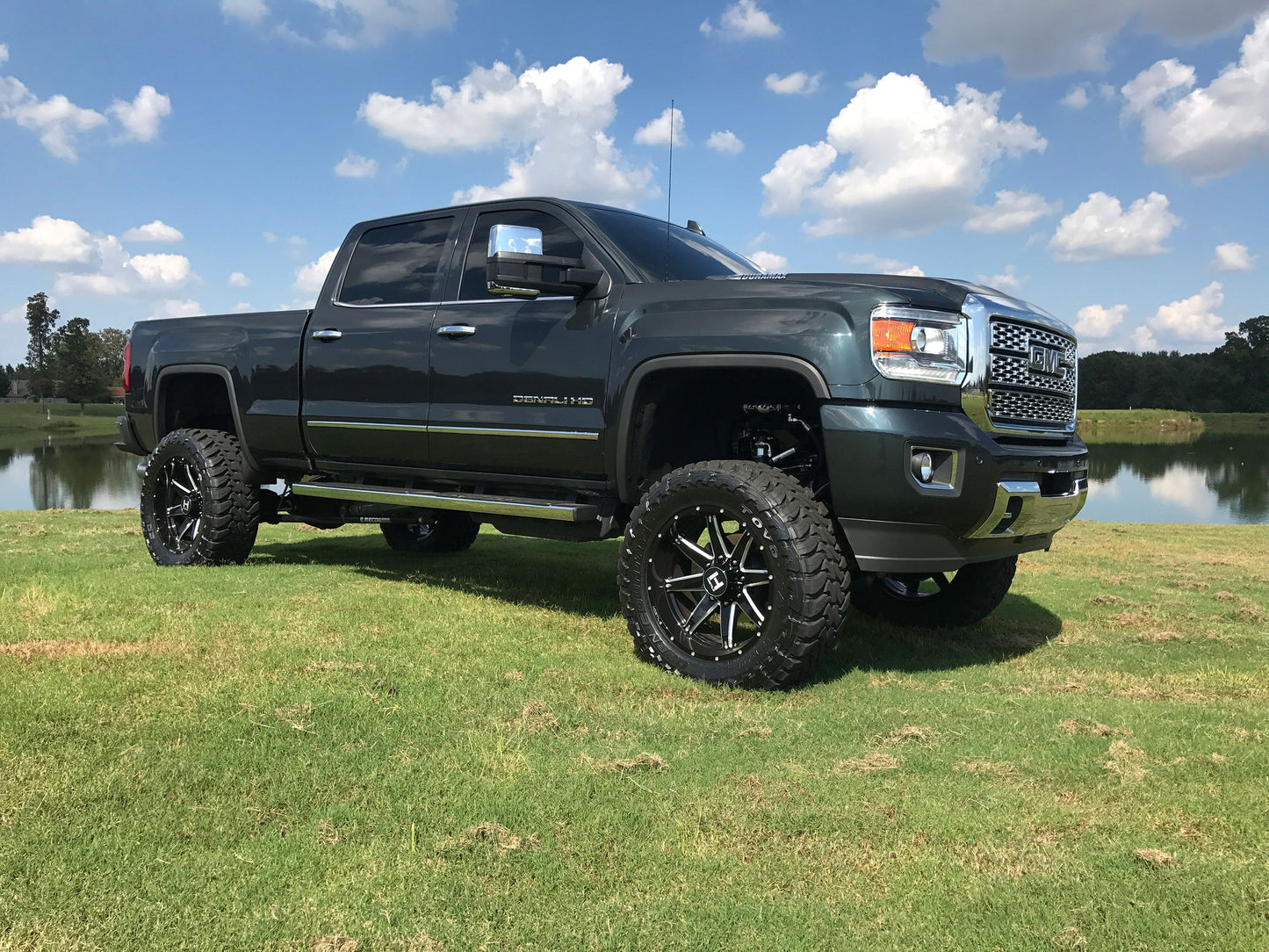

Got a Chevrolet Silverado / GMC 2500 and want it to be B-I-G? Then look no further than the BDS Suspension 6.5" Lift Kit.

Outback Kitters love this BDS 6.5" Lift Kit for 2011-2019 Chevy Silverado / GMC 2500 / 3500 with Fox 2.5 Performance Elite Shocks - it is designed to deliver exceptional ground clearance and off-road capacity. It includes Fox shock technology to provide precision tuning and a smooth ride, while the adjustable DSC allows you to customise the performance of your shocks to match the terrain. With heavy-duty front coils and 6.5" of added ride height, you can take the road less travelled and stand tall with confidence.

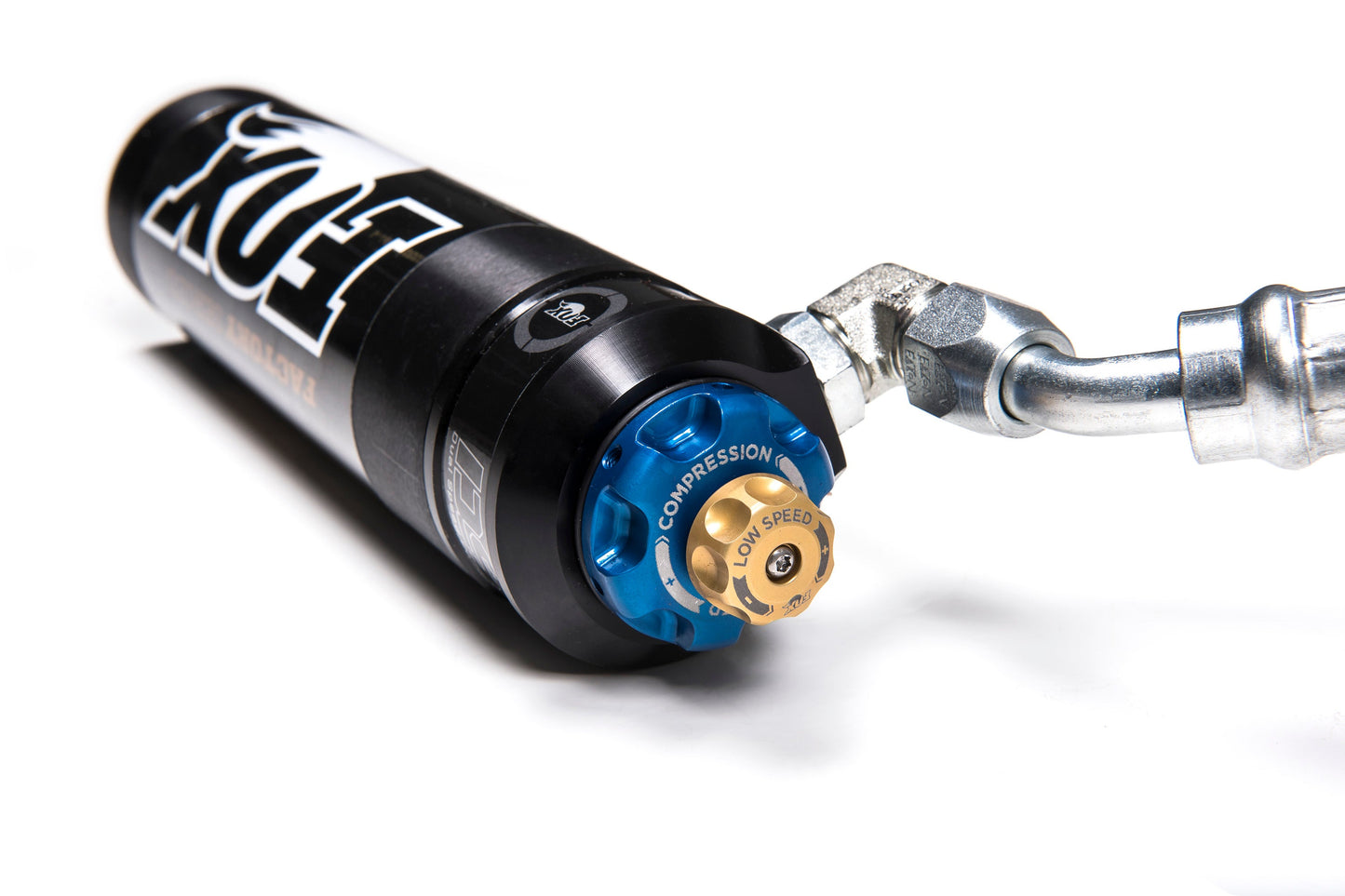

The Fox Shocks with DSC allows for easy adjustment of the vehicle's suspension compression dampening so you can dial in the ideal ride performance to soak up the bumps, both large and small. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression allowing you to make large or small changes to further improve your performance. Adjustments can be made by simply twisting the knobs located on the end of the reservoir. No tools or shop adjustments needed, allowing you to tune the suspension out on the trail.

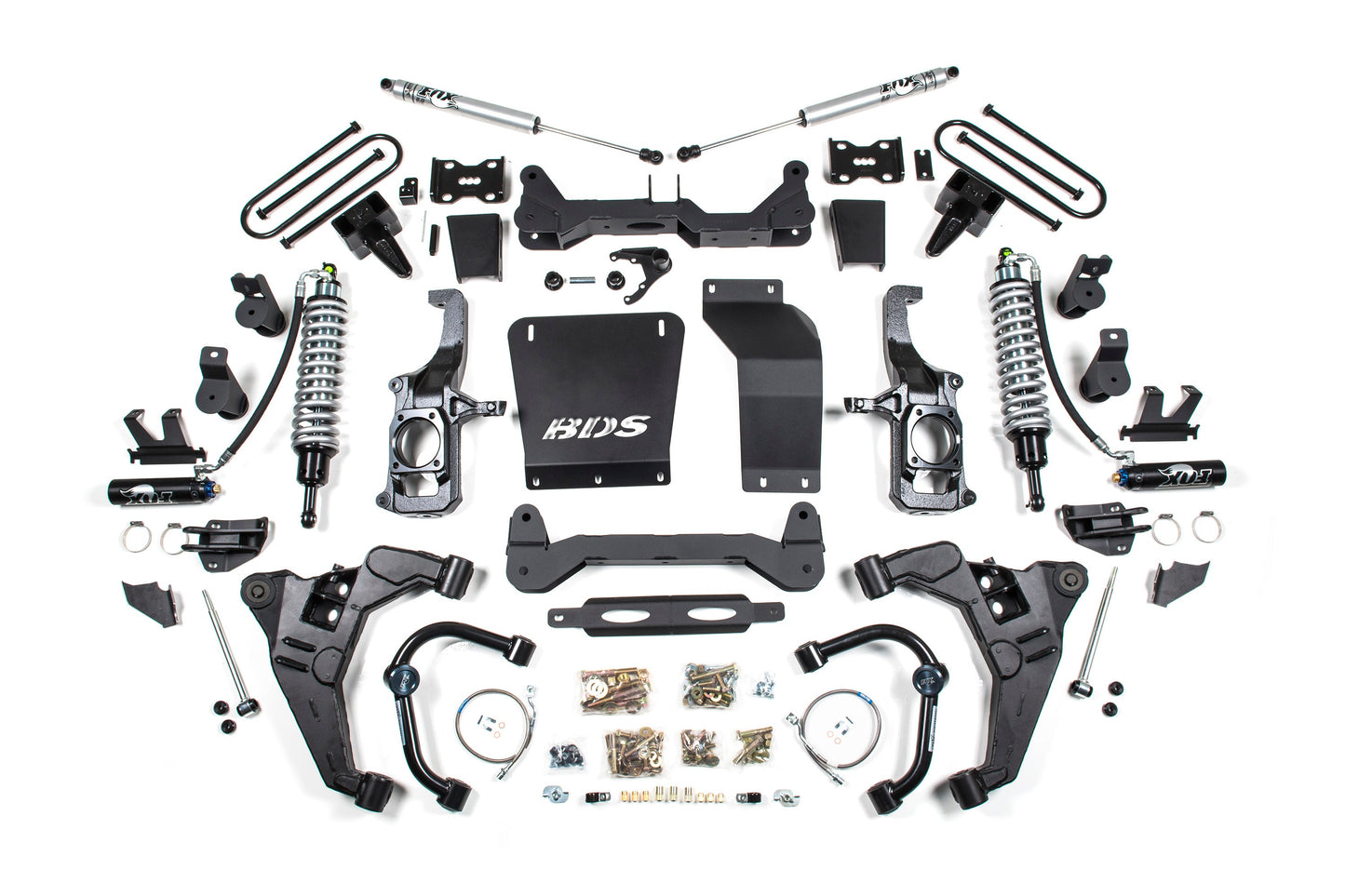

This mammoth kit includes:

  • Front Fox 2.5" Remote Reservoir Performance Elite Coilover Shocks with DSC
  • Rear Fox 2.0" IFP Gas Shocks
  • Replacement Factory Torsion Bars

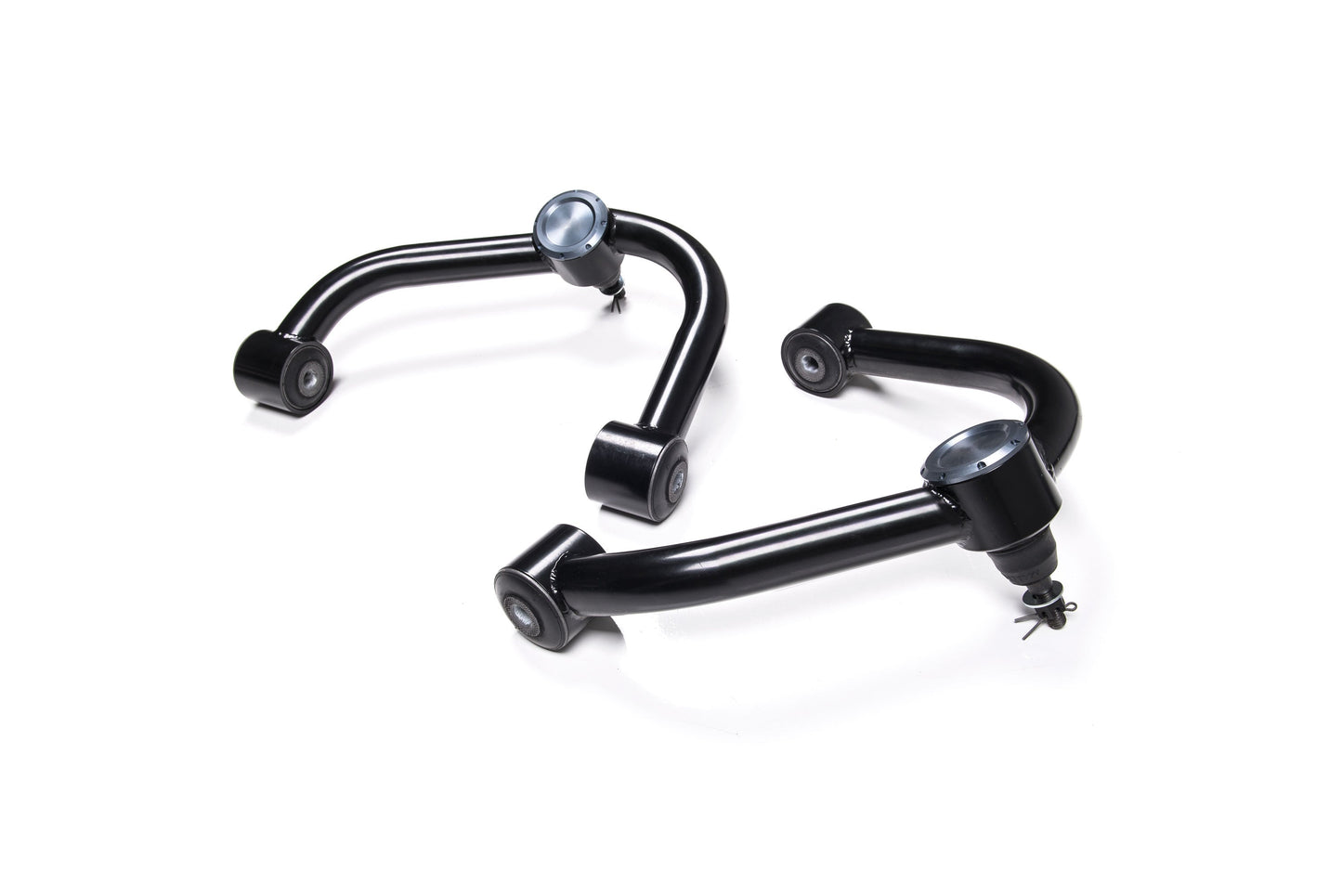

  • Upper Control Arms

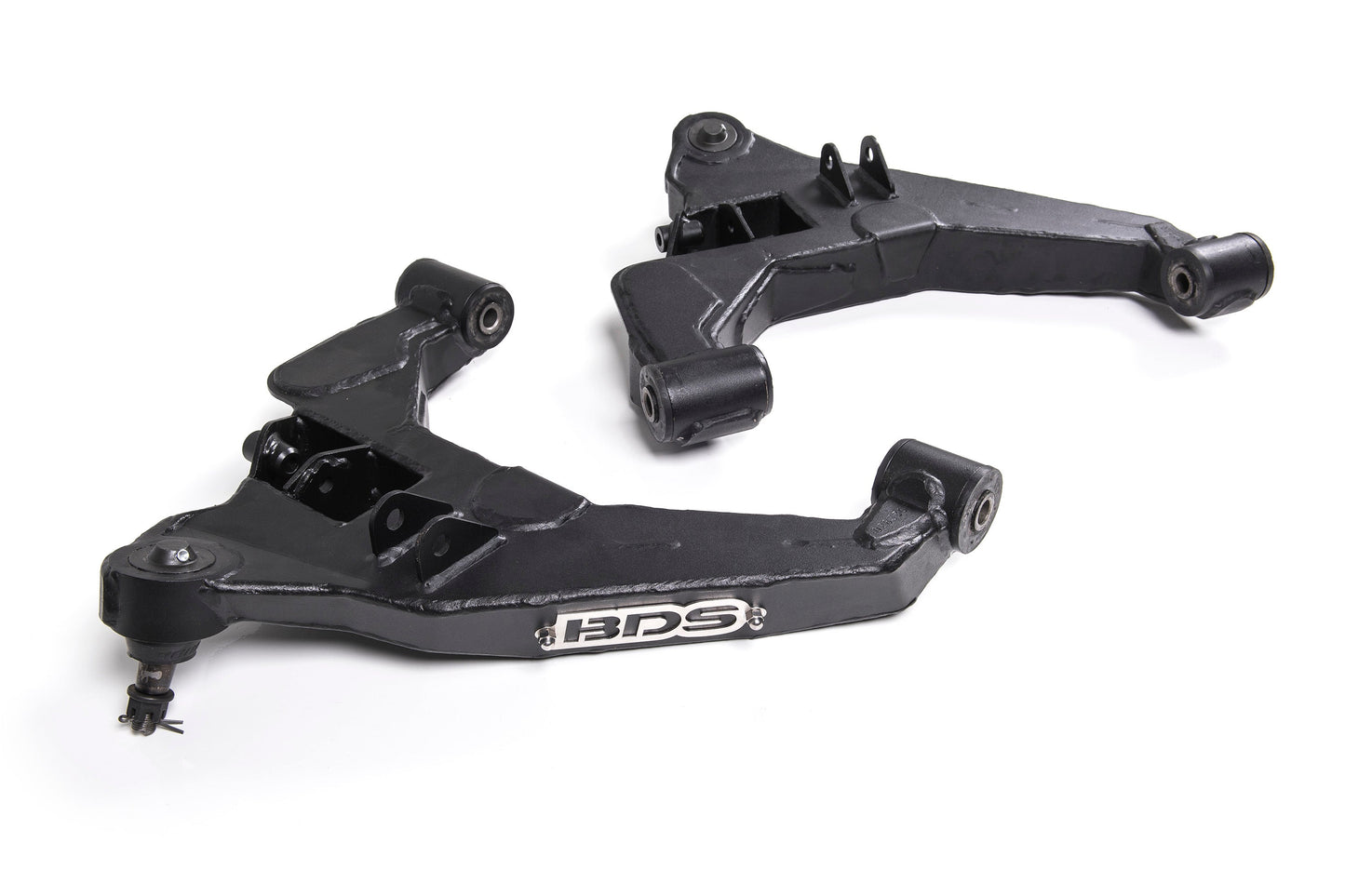

  • Lower Control Arms
  • 5" Rear Spacer Block
  • High Clearance Crossmembers
  • Front Skid Plate
  • Diff Drop Kit
  • New Knuckles

Overload Spring Options:

Some early model Chev Silverado 2500's came with an Overload Spring, which is an additional leaf spring mounted on top of the factory leaf pack. Please ensure you select the right kit if your Silverado came With or Without the Overload Spring.

Tyre & Wheel Combinations

37x12.5 w/ 17x8 and 4-1/2" - 4-5/8"" back spacing
37x12.5 w/ 18x9 and 4-1/2" - 4-5/8"" back spacing
37x12.5 w/ 20x9 and 5-5.5" back spacing
*Trimming may be required*

  • Est. Installation: 8-10 hours
  • Difficulty Level (easy 1 - 5 complicated): 4

Outback Kitters is a BDS Suspension distributor located in Brisbane, QLD. We specialise in supporting installation workshops around the country and are proud to bring such a high quality product into Australia.
