BDS Suspension

BDS 5" Lift Kit for 2020+ Chevy Silverado 2500 with Fox 2.5 Performance Elite Shocks

BDS 5" Lift Kit for 2020+ Chevy Silverado 2500 with Fox 2.5 Performance Elite Shocks

Regular price $8,330.00 AUD
Regular price Sale price $8,330.00 AUD
Sale Sold out
Tax included.
Shock Option

If the 3" lift isn't cutting it for you, then get perfection with the Chevrolet Silverado / GMC 2500 5" Lift Kit from BDS Suspension.

This BDS 5" Lift Kit for 2020+ Chevy Silverado / GMC 2500 / 3500 with Fox 2.5 Performance Elite Shocks is designed to deliver exceptional ground clearance and off-road capacity. It includes Fox shock technology to provide precision tuning and a smooth ride, while the adjustable DSC allows you to customise the performance of your shocks to match the terrain. With 5" of added ride height, you can take the road less travelled and stand tall with confidence.

The Fox Shocks with DSC allows for easy adjustment of the vehicle's suspension compression dampening so you can dial in the ideal ride performance to soak up the bumps, both large and small. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression allowing you to make large or small changes to further improve your performance. Adjustments can be made by simply twisting the knobs located on the end of the reservoir. No tools or shop adjustments needed, allowing you to tune the suspension out on the trail.

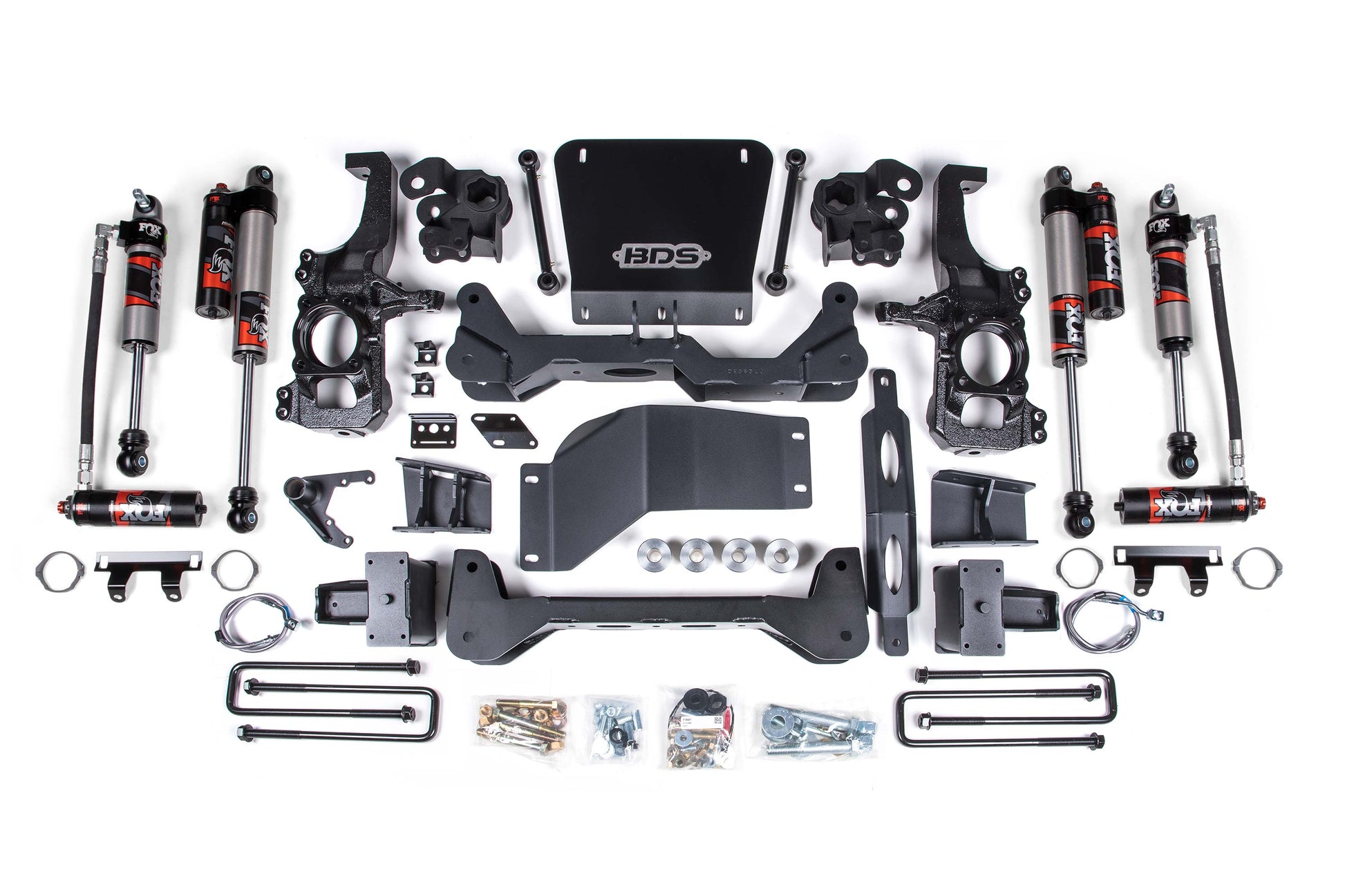

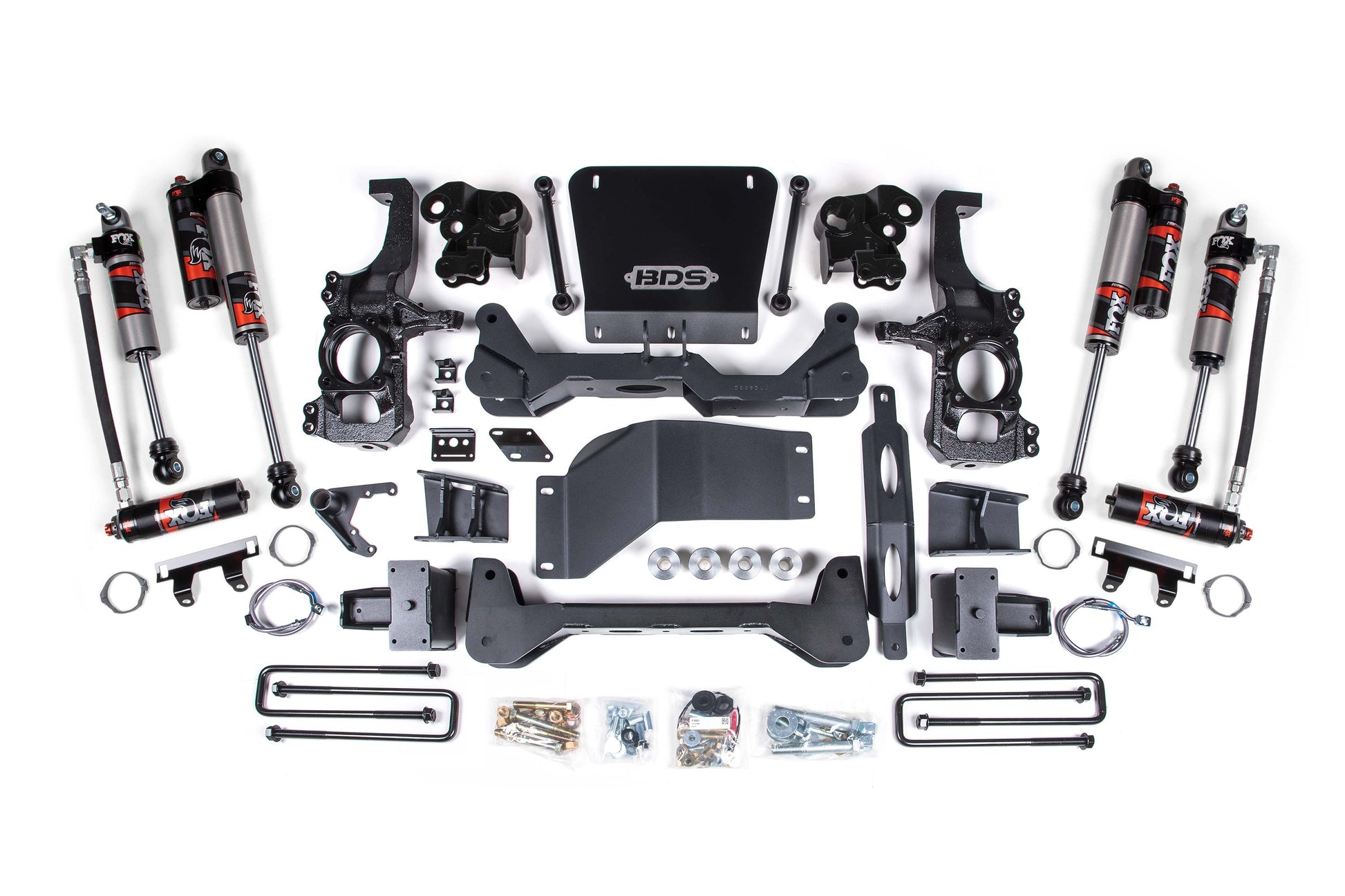

This mammoth kit includes:

  • Front & Rear Fox 2.5" Remote Reservoir Performance Elite Shocks with DSC
  • Rear Spacer Block
  • High Clearance Crossmembers
  • Front Skid Plate
  • Diff Drop Kit
  • New Knuckles

Tyre & Wheel Combinations

37x12.5 w/ 20x9 and 5-5.5" back spacing
35x12.5 w/ 20x10 and 5-5.5" back spacing
35x12.5 w/ 20x9 and 4.5-4.625" back spacing

*Trimming may be required*

  • Est. Installation: 8-10 hours
  • Difficulty Level (easy 1 - 5 complicated): 4


  • Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire.
  • In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.

Outback Kitters is a BDS Suspension distributor located in Brisbane, QLD. We specialise in supporting installation workshops around the country and are proud to bring such a high quality product into Australia.
