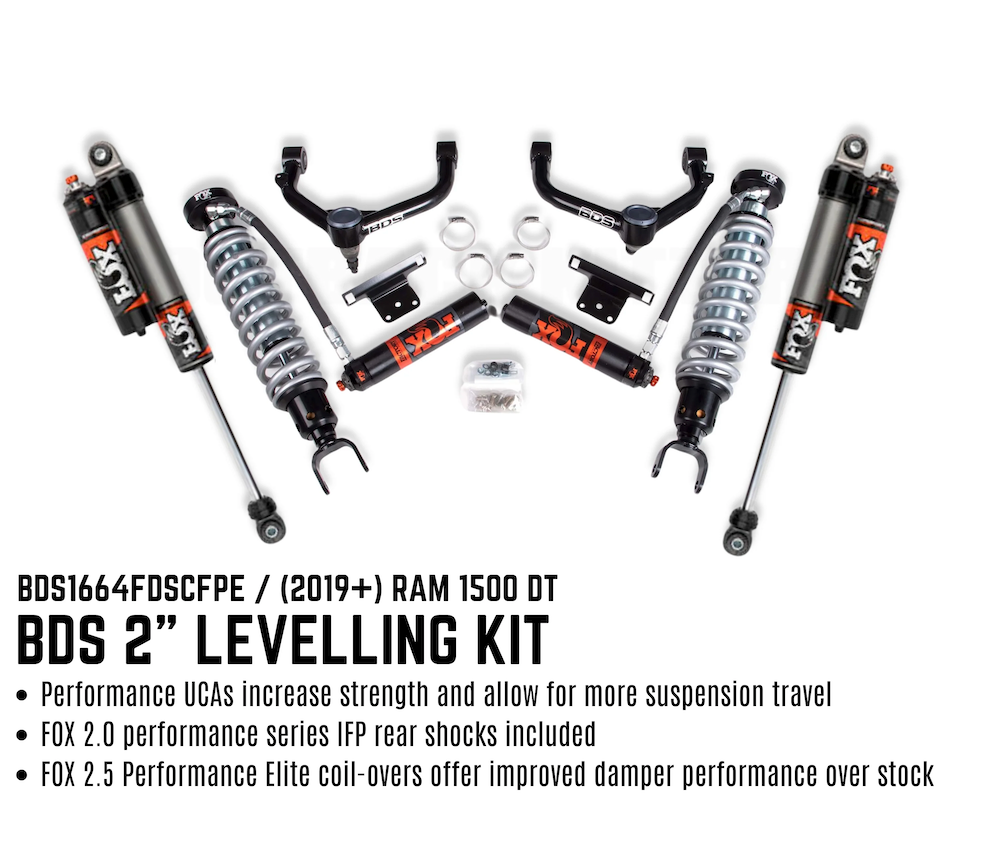

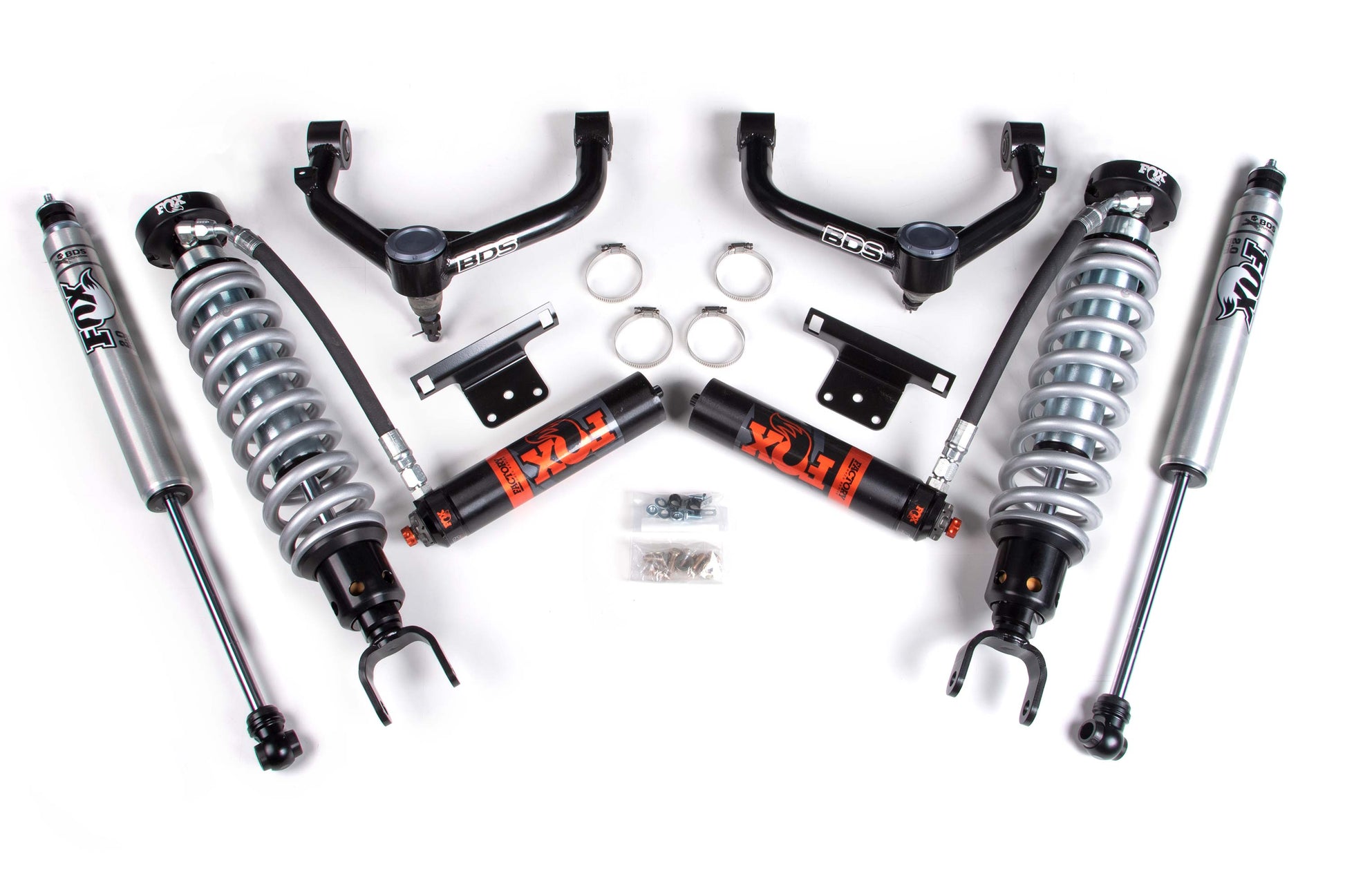

BDS Suspension 2" Levelling Kit For Ram 1500 DT

BDS Suspension raises the bar for 2019+ RAM 1500 with new 2" coilover systems.

This BDS Suspension 2" Levelling Kit for Ram 1500 DT is so much more than just a "leveling kit", these new coilover systems take advantage of the factory suspension geometry without overextending operating angles and offer next level performance in a smaller lift package.

Your Ram 1500 DT will not only have a better stance, but it will ride better than ever. There are several combinations for this kit:

• Front Fox 2.5" Remote Reservoir Shocks with DSC coupled with Fox 2.0 Rear Shocks
• Front Fox 2.5" Remote Reservoir Shocks with DSC coupled with Fox 2.5" Remote Reservoir Performance Elite Shocks with DSC on all 4 corners.

All kits include Upper Control Arms so your Ram 1500 DT can be lifted and keep the right geometry to tackle the harsh Australian outback.

SPECIFICATIONS

• Front Lift Method : Coil-Over
• Rear Lift Method : Stock
• Shocks Included : Yes
• Front Lift Height : 2"
• Rear Lift Height : 0"

TYRE & WHEEL COMBINATIONS

• 295/65r w/20x9 and 5" back spacing
• 33x12.50 w/20x9 and 4.5" back spacing
• *Trimming may be required

IMPORTANT NOTES

• Fits 4WD models only
• Vehicles equipped with "Offroad or Rebel Package" will not achieve full 2" of lift, net ride height change will be around 1" above stock.
• Will not fit vehicle equipped with factory Air Ride.
• Will NOT fit 2019-2022 RAM 1500 Classic models, Refer to the 2018 kit listings.

INSTALLATION

• Installation Guide:

Download 1 Download 2

• Estimated time:  5 hours
• Difficulty Level: Moderately Easy
