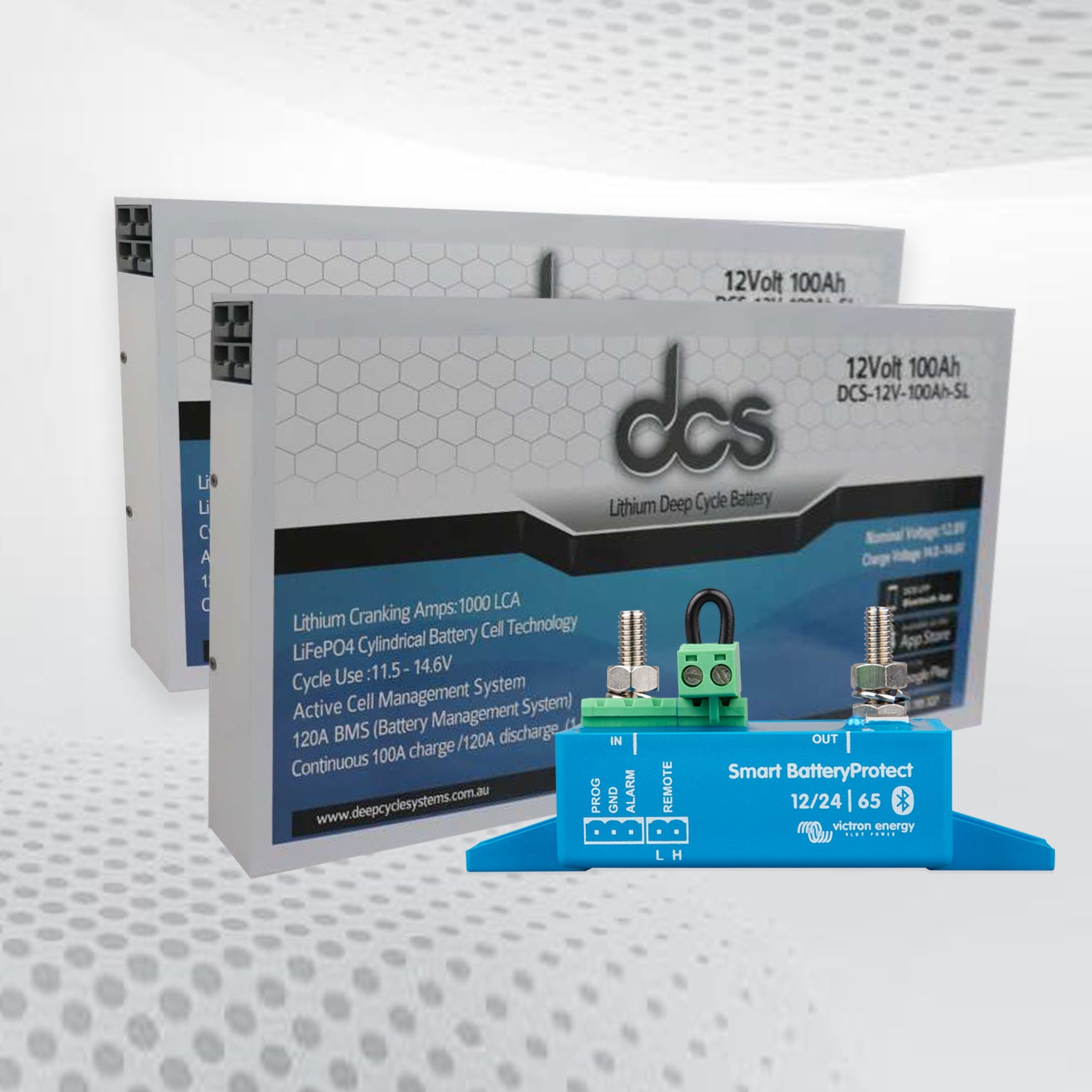

ULTIMATE DCS 200AH DUAL CAB DUAL BATTERY SYSTEM
ULTIMATE DCS 200AH DUAL CAB DUAL BATTERY SYSTEM
– 2 x DCS 12V 100Ah Super Slims
– 1 x Victron Smart Battery Protect 65A
DCS 12V 100AH Super Slim Line
– Cell status showing real time cell balancing operation
– BMS MOSFET temperature ( great info when your winching or running a large inverting load or your trolling motor to know how hard your pushing the electronics ).
– SOC% estimate (using impedance tracking – the App learns the SOC after the first 10 cycles)
– Battery pack voltage and cycle count
– Amp meter – showing charge and discharge current
– Connectivity distance up to 10m
– Now there is no need to install battery monitors or shunts in boats, campers or vehicles. You have all the info you need at your finger tip.
– The SOC estimate is accurate on single batteries, the more batteries that are expanded in parallel the less accurate the SOC becomes.
– This free application provides the perfect tell-tale about the battery packs state of health as it ages
– Assists installers & integrators to quickly diagnose any system issues
Victron Smart Battery Protect 65A
The Smart Battery Protect disconnects the battery from non-essential loads before it is completely discharged or before it has insufficient power left to crank the engine.
When using Bluetooth to program the Smart Battery Protect any required engage/disengage levels can be set (fully programmable).
When running DCS batteries as engine/cranking batteries it’s best to cutoff loads at 12.8V (which leaves around 20%SOC for engine cranking).
When running DCS batteries as house batteries for deep cycling the cutoff can be set even lower to 11.5V which leaves around 2%SOC to give you full cycling capacity.
Specifications: | – |
---|---|
Nominal Voltage | 12.8V |
Nominal Capacity (1Hr) | 100Ah |
Case Dimensions (L x W x H) | 690mm x 50mm x 300mm |
Weight | 13.0 Kg |
Cycling voltage | 11.5 ~ 14.6V |
Charge voltage | 14.0 ~ 14.6V |
Float Voltage | 13.5 ~ 13.7V |
Maximum Charge Current | 100A |
Recommended Charge Current | ≤70A |
Maximum Discharge Current | ≤200A |
BMS (built in) | Automatic cell balancing, over discharge/charge |
Cell Chemistry | DCS 3.2V 7.2Ah Cylindrical (LifePO4) |
Cycle Performance | 2500 Cycles @ 100% DOD |
LCA | 1000 |
Ingress Protection | IP54 |
Case | Metal With White Finish |
Operating temp Range | -30 to +80 degrees C |
Terminals | Twin 120A Anderson Plugs |
Parallel Connections Only | YES |
Series Connections | No |
Warranty | 5 years |
